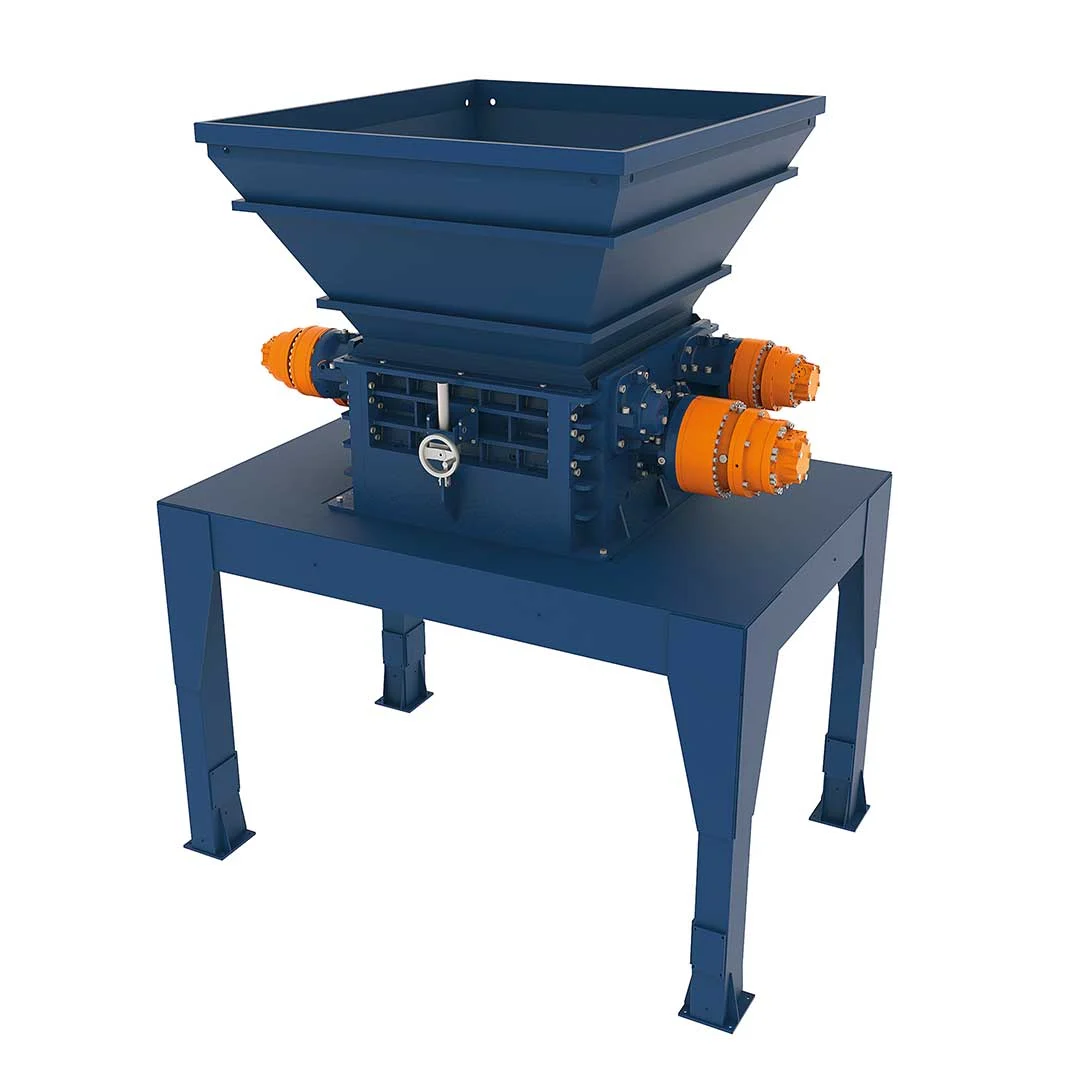

4-Shaft Shredders 4R150
4R150

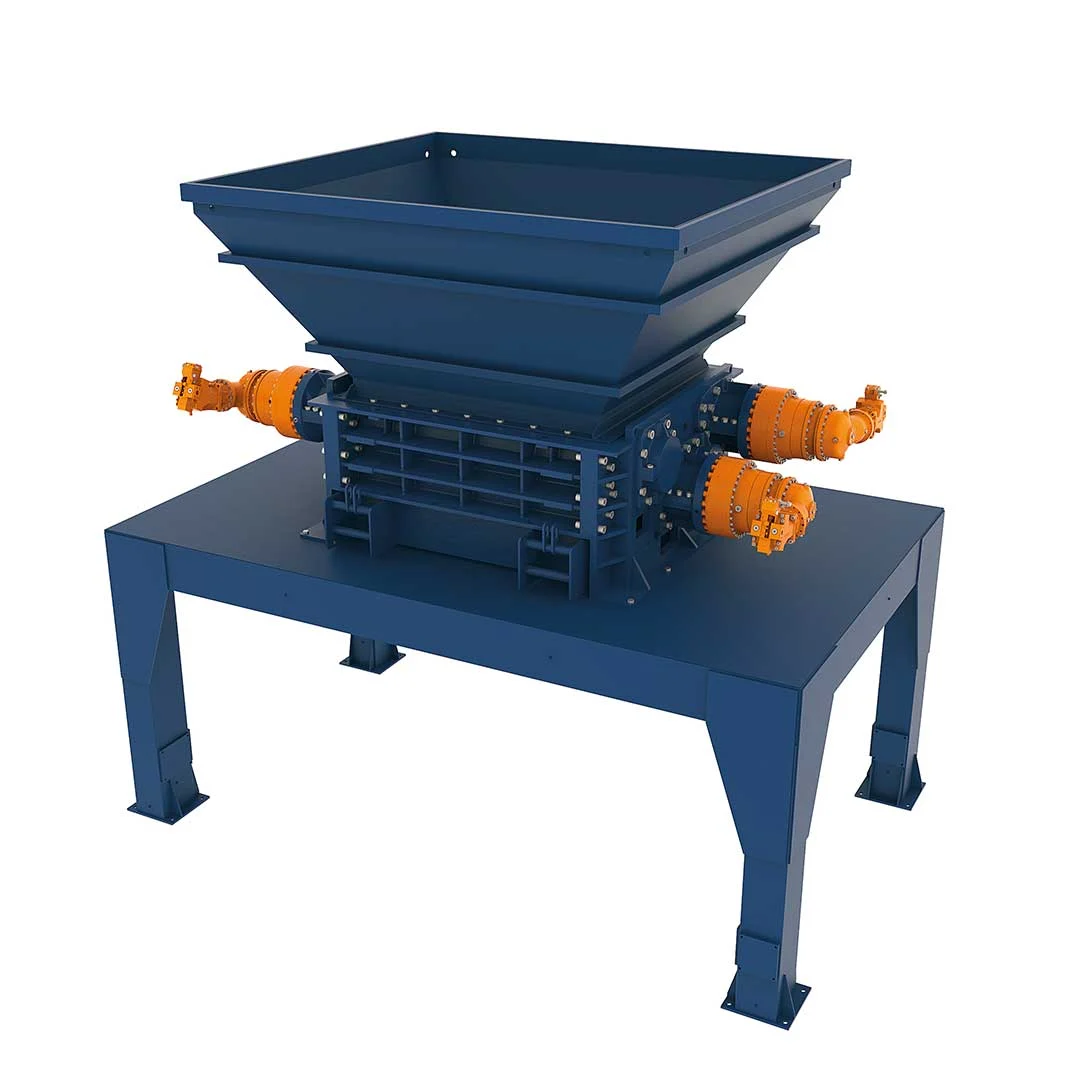

4-Shaft Shredders 4R400
4R400

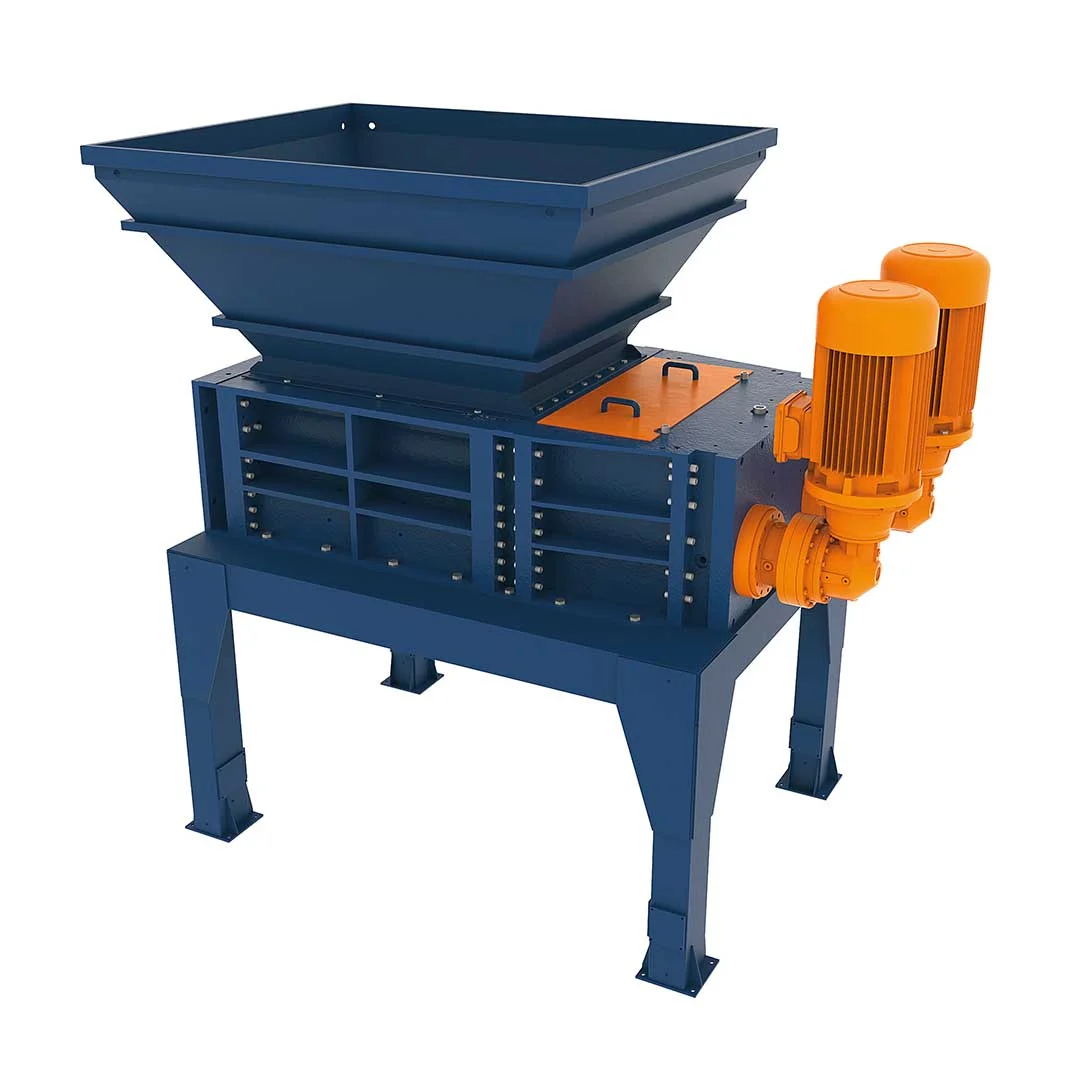

4-Shaft Shredders 4S40
4S40

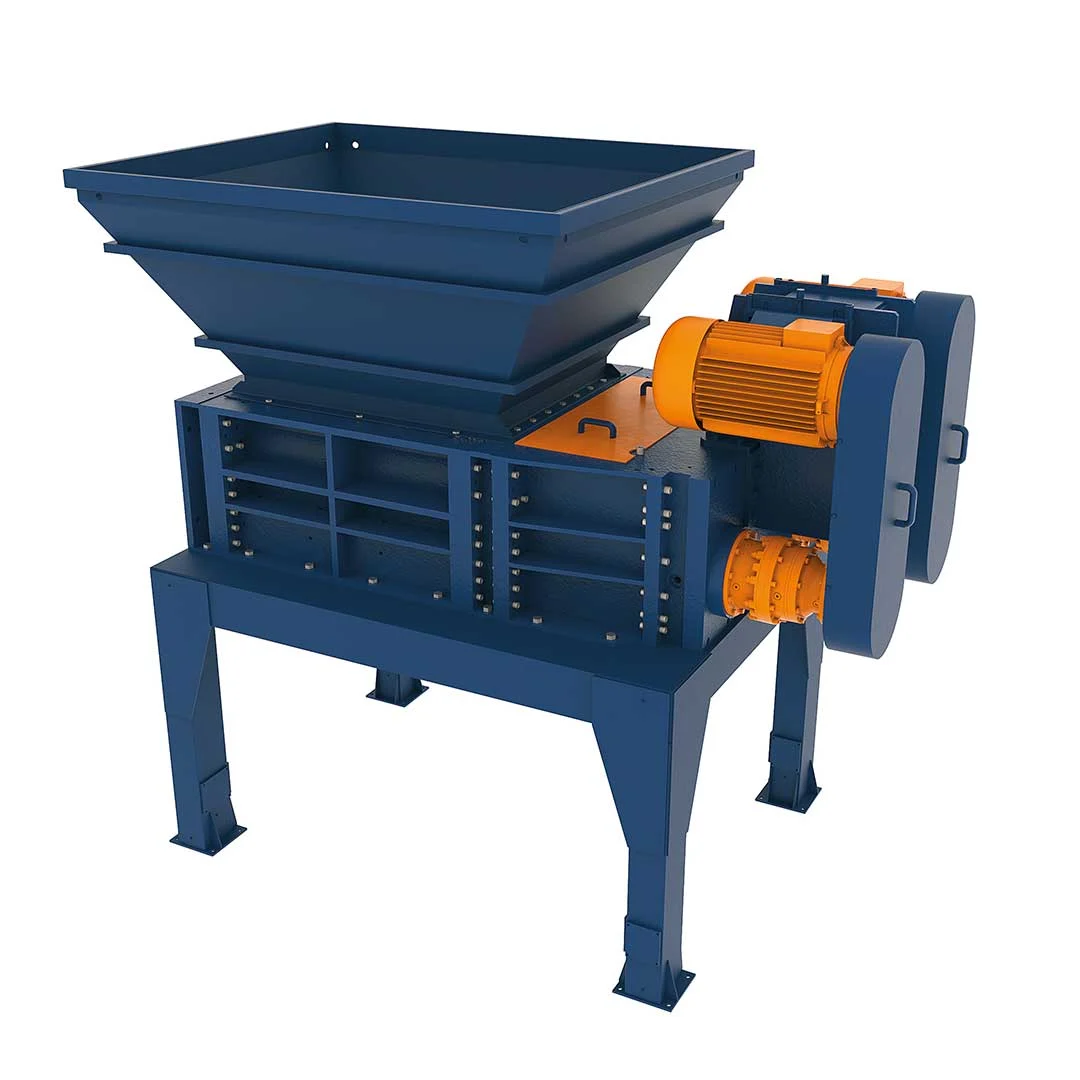

4-Shaft Shredders 4S60
4S60

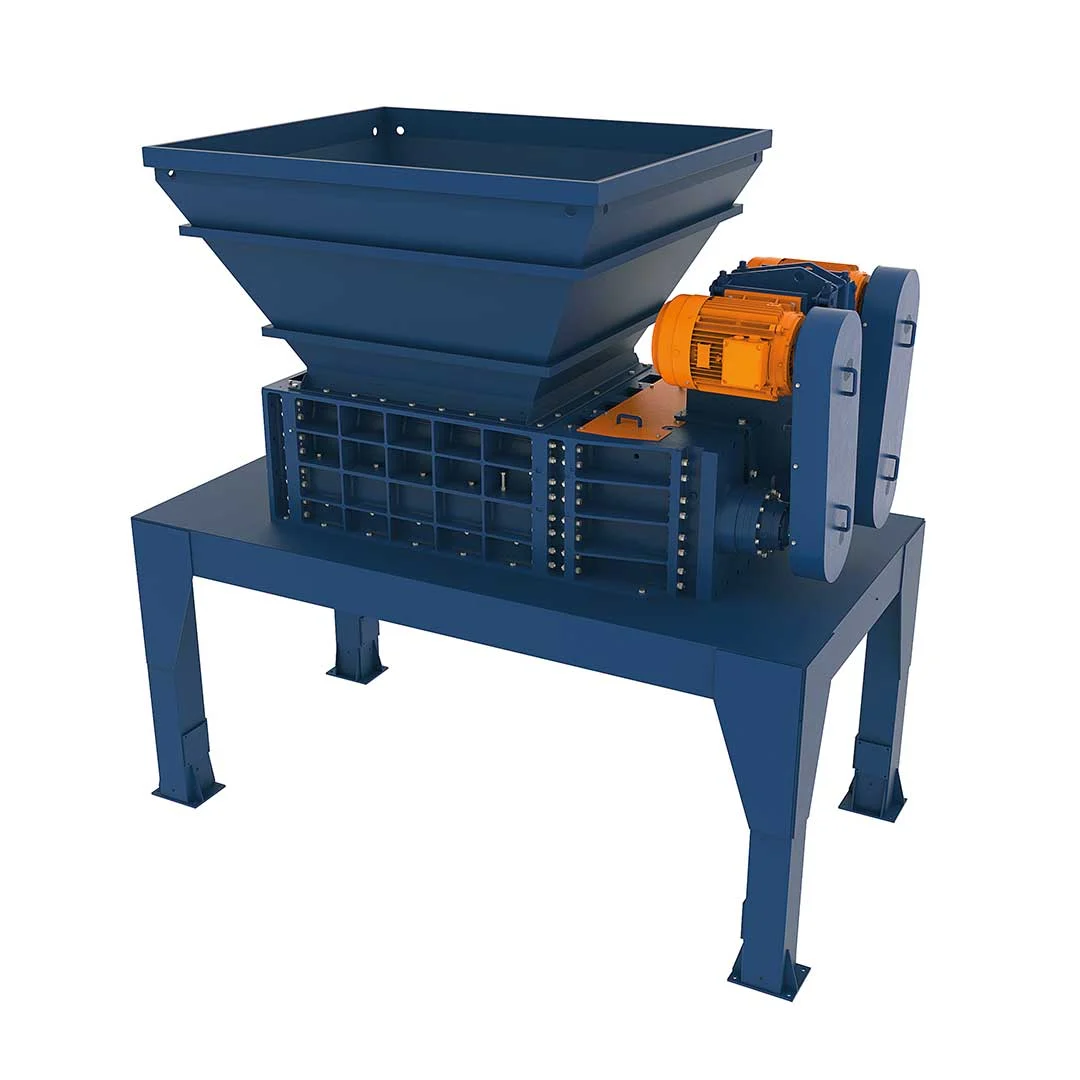

4-Shaft Shredders 4S120
4S120

4-Shaft Shredders

Electric or hydraulic drive — 30 to 320 kW

Satrindtech 4-shaft shredders represent the most advanced technology in our range for output particle size control. Four counter-rotating shafts, arranged on two overlapping planes, work in sequence: the two upper shafts perform pre-shredding of the material, while the two lower shafts complete the reduction, ensuring extremely uniform and consistent output. This dual-stage shredding process eliminates the need for sizing screens and minimizes dust production, thanks to the low shaft speed.

Four-shaft technology is the ideal choice for applications requiring 24/7 operational continuity with consistent output: WEEE, medical waste, municipal solid waste, plastics, and industrial waste. The range covers power ratings from 30 to 320 kW with working chambers up to 1960×1690 mm, available in electric version for compact sizes (4S series) and hydraulic for large-capacity machines (4R series).

0kW
min
0kW
max
0mm
working chamber min
0mm
working chamber max

Applications / Materials

The dual pair of counter-rotating shafts ensures uniform output regardless of input material heterogeneity, making it the reference technology for waste treatment plants requiring quality and continuity.

Plastic icon Plastics (rigid, technical, mixed)
Industrial waste icon Industrial waste
Wood icon Wood
Electronic waste icon Electronic components / WEEE
Paper icon Paper and cardboard
Medical waste icon Medical waste
Municipal waste icon Municipal solid waste (MSW)

Technical Specifications

The four-shaft series is divided into two families: the 4S series (electric drive, compact and medium sizes) and the 4R series (hydraulic drive, high capacity).

4S Series — Electric Drive (30–90 kW)

Compact four-shaft shredder designed to ensure volume reduction and controlled particle size in a single robust and versatile solution.

Four-shaft shredder designed to combine volume reduction and controlled particle size, with robustness and operational continuity in industrial applications.

High-capacity four-shaft shredder designed to combine volume reduction and controlled particle size with exceptional robustness and operational continuity.

4R Series — Hydraulic Drive (110–320 kW)

Large four-shaft shredder designed to ensure volume reduction and controlled particle size with high robustness and operational continuity.

High-capacity four-shaft shredder designed for very heavy-duty applications requiring volume reduction, controlled particle size, and maximum operational reliability.

Safety and Reliability

SatrindTech 4-shaft shredders are designed and manufactured in compliance with the European Machinery Directive. The dual-stage configuration with four shafts reduces stress on each individual component, increasing machine service life and reducing long-term maintenance costs.
  • Automatic overload protection system: Automatic reversal of all four shafts in case of non-shreddable material, with cycle resumption without operator intervention.
  • Access panels with safety microswitches: Automatic shutdown of the entire machine when any access panel to the working chamber is opened.
  • Low shaft speed: Reduced shaft speed minimizes dust production and overheating risk, essential for WEEE and medical waste.
  • Interchangeable blades with multiple thicknesses: The 4S series offers four interchangeable blade thicknesses (15–19–29–43 mm) to adapt output particle size to process requirements.
  • Heavy-duty steel frame: Load-bearing structure sized for dual-stage shredding stresses, with long-lasting reliability even in 24/7 cycles.
  • Integrated electrical panel with PLC: Automatic work cycle management, operational parameter monitoring, and interface for integration into supervisory systems.
4-Shaft Shredders

Plant Integration

Satrindtech 4-shaft shredders are the ideal choice for waste treatment plants requiring consistent output, particle size quality, and uninterrupted operational continuity.

4-Shaft Shredders 4R150
4R150
4-Shaft Shredders 4S120
4S120
4-Shaft Shredders 4S60
4S60
4-Shaft Shredders 4S40
4S40
4-Shaft Shredders 4R400
4R400
